What Are Metal Drawer Systems and How Do They Integrate with Custom Cabinetry?
Metal drawer systems are the hardware infrastructure that determines how well custom cabinetry functions over time. A properly specified drawer system -- the right slide type, load rating, and extension geometry -- is one of the most significant quality differentiators between custom and production cabinetry.
In CNC cabinet fabrication, drawer systems are specified at the design stage and built directly into the cut files as dimensioned components. Commercial-grade slide systems -- undermount systems in particular -- depend on tight dimensional tolerances that CNC production maintains consistently across every cabinet in a run. A plywood cabinet box or MDF carcass cut on a CNC router provides the dimensional consistency that premium hardware requires.
The three most important specification decisions for any drawer system are: (1) slide type -- undermount vs. side-mount, (2) extension -- partial, full, or over-travel, and (3) load rating -- standard, heavy-duty, or commercial. These decisions cascade through the cabinet design: undermount slides require specific bottom panel clearance; heavy-duty slides need deeper side-rail space; over-travel extension changes the minimum interior clearance behind the cabinet face frame.
For kitchen cabinet projects, soft-close undermount slides from Blum, Hettich, or Salice represent the current professional standard. They deliver the quiet, controlled close that defines a quality kitchen installation and are specified on virtually every custom kitchen at the mid-to-premium tier.
Drawer System Types
The right drawer system type depends on the application, cabinet construction method, and performance expectations. Each system type has a distinct installation geometry, load rating, and finish profile that affects cabinet design decisions upstream.
Soft-Close Drawer Systems
The professional standard for kitchen and bath cabinetry
Soft-close systems use integrated hydraulic dampers to pull the drawer closed and cushion the final inch of travel. They eliminate slam noise, reduce wear on drawer boxes and face frames, and signal quality throughout the cabinet. Soft-close is the expected standard on any custom kitchen or bath installation in the mid-to-premium market.
Best For
- Kitchen base cabinets and drawer banks
- Bathroom vanity drawers
- Any installation where quiet operation is a design priority
Undermount Drawer Slides
Concealed side hardware for a clean interior appearance
Undermount slides mount under the drawer box and are fully concealed when the drawer is open -- the drawer box interior shows no hardware. This system requires a specific bottom panel clearance in the cabinet design and a slightly narrower drawer box width than side-mount alternatives. Undermount systems are the premium specification for kitchen and bath cabinetry where interior aesthetics matter.
Best For
- Premium kitchen cabinetry with visible drawer interiors
- Bathroom vanities and fine furniture applications
- Installations where hardware-free interior appearance is specified
Heavy-Duty Drawer Systems
High load rating for pot drawers, file drawers, and commercial use
Heavy-duty slides are rated for 100-150 lb loads per drawer -- appropriate for deep pot drawers, file drawers, and commercial kitchen storage. They use heavier-gauge steel track and roller systems than residential slides. Heavy-duty systems are typically side-mount and require additional side clearance in the cabinet design.
Best For
- Deep pot and pan drawer banks in kitchen base cabinets
- File drawers in office and built-in applications
- Commercial kitchen and food service storage
Full-Extension Drawer Systems
Complete drawer box access -- 100% extension or over-travel
Full-extension slides allow the drawer box to travel its entire depth out of the cabinet, providing access to the full interior including the back corners. Over-travel systems extend even further -- the drawer box clears the front of the cabinet entirely. Full extension is the minimum specification for most custom cabinetry applications; partial-extension slides restrict rear cabinet access and are generally avoided in quality installations.
Best For
- Any cabinetry application where full interior access is expected
- Deep base cabinets where partial extension would hide usable storage
- Accessibility-focused installations
Where Metal Drawer Systems Are Used
Drawer system selection is application-driven. Kitchen base cabinets, bathroom vanities, custom built-ins, and commercial cabinetry each have distinct load, frequency, and aesthetic requirements that determine the right slide specification.

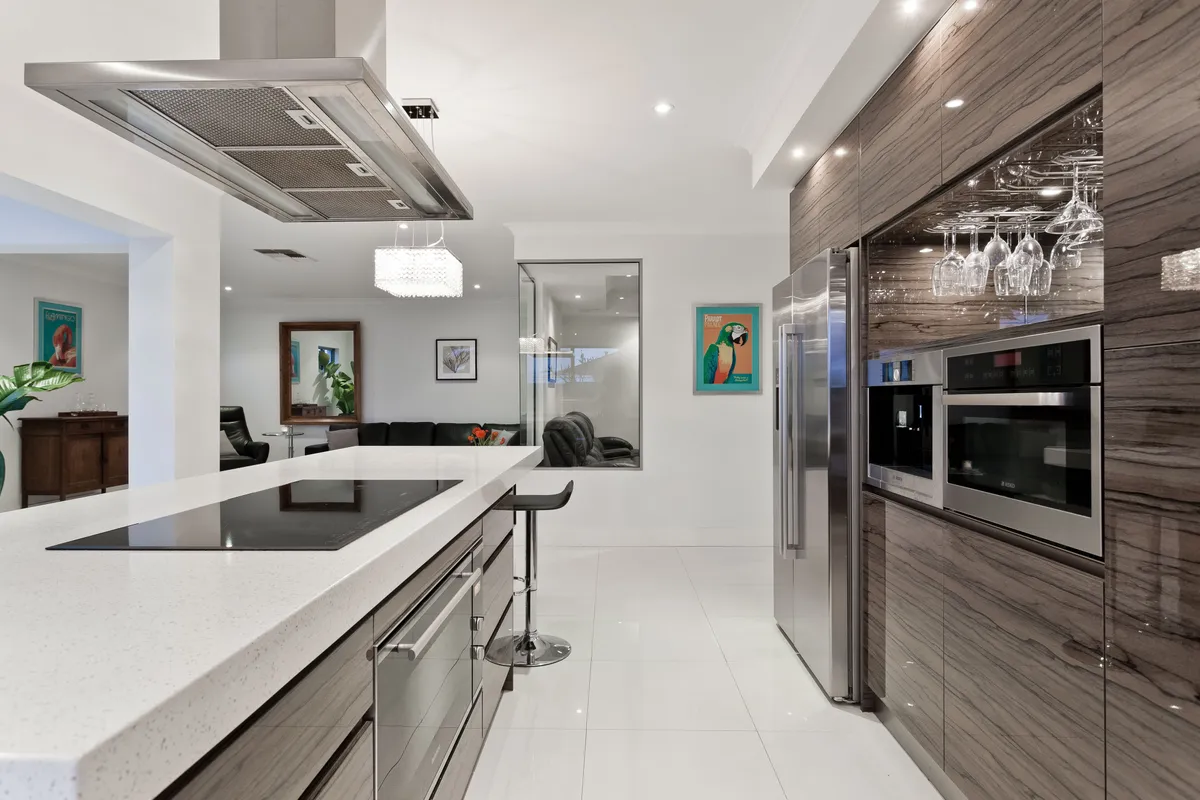

Kitchen cabinetry sees the highest drawer frequency of any residential application. Soft-close undermount slides are the professional standard for kitchen base cabinets, drawer banks, and pantry pull-outs in custom kitchen installations.
- Base cabinet drawer banks with soft-close undermount slides
- Deep pot and pan drawers with heavy-duty side-mount systems
- Cutlery and utensil drawers with full-extension undermount slides
- Pantry pull-outs and spice drawer inserts
Kitchen drawer systems typically see 10,000+ open/close cycles annually -- specify slides rated for residential or commercial frequency

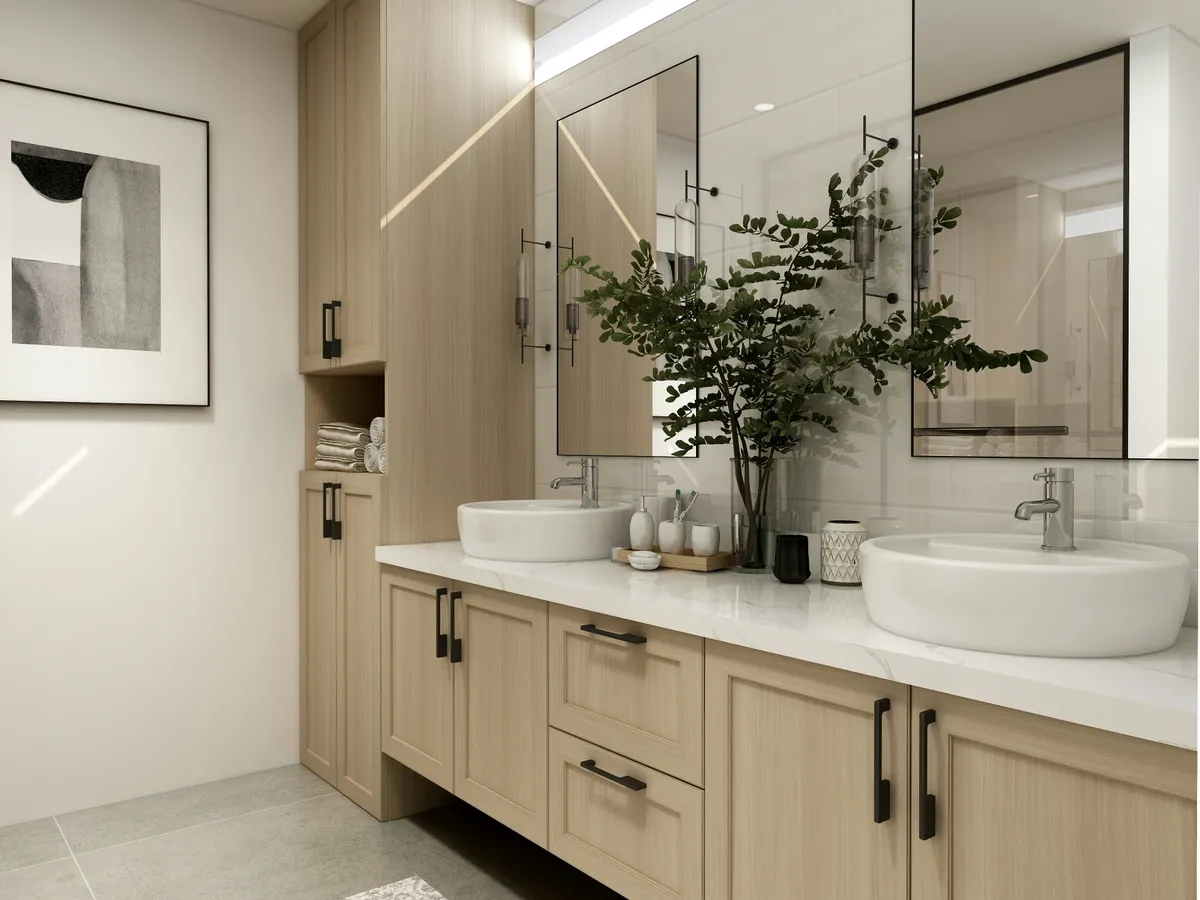

Bathroom vanity drawers operate in high-humidity environments and benefit from corrosion-resistant slide systems. Undermount slides are the standard specification for vanity applications where a clean interior aesthetic is expected.
- Single and double vanity drawer banks
- Shaker and inset door vanities with concealed undermount slides
- Tower drawer cabinets for linen and accessory storage
- Floating vanity applications with space-efficient undermount systems
Specify humidity-rated slide systems for primary bathroom and steam shower applications

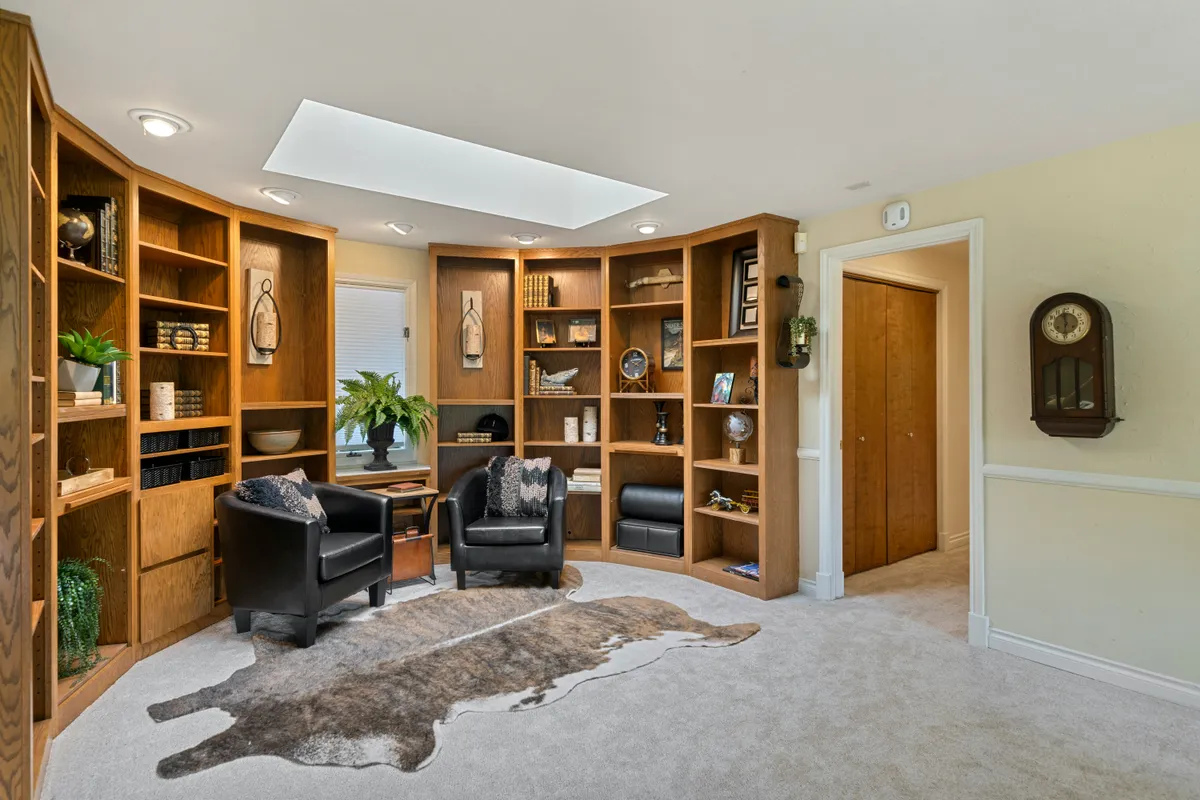

Built-in furniture and home office cabinetry use drawer systems across a wide load range -- from light file drawers to heavy lateral file and lateral storage applications. Full-extension systems are essential for built-in applications where rear storage access matters.
- Home office built-ins with file and pencil drawers
- Mudroom bench and locker drawer systems
- Bedroom built-in dresser and wardrobe drawers
- Living room media console and built-in storage drawers
File drawers in built-in office applications require heavy-duty rated slides -- standard residential slides are undersized for loaded file storage

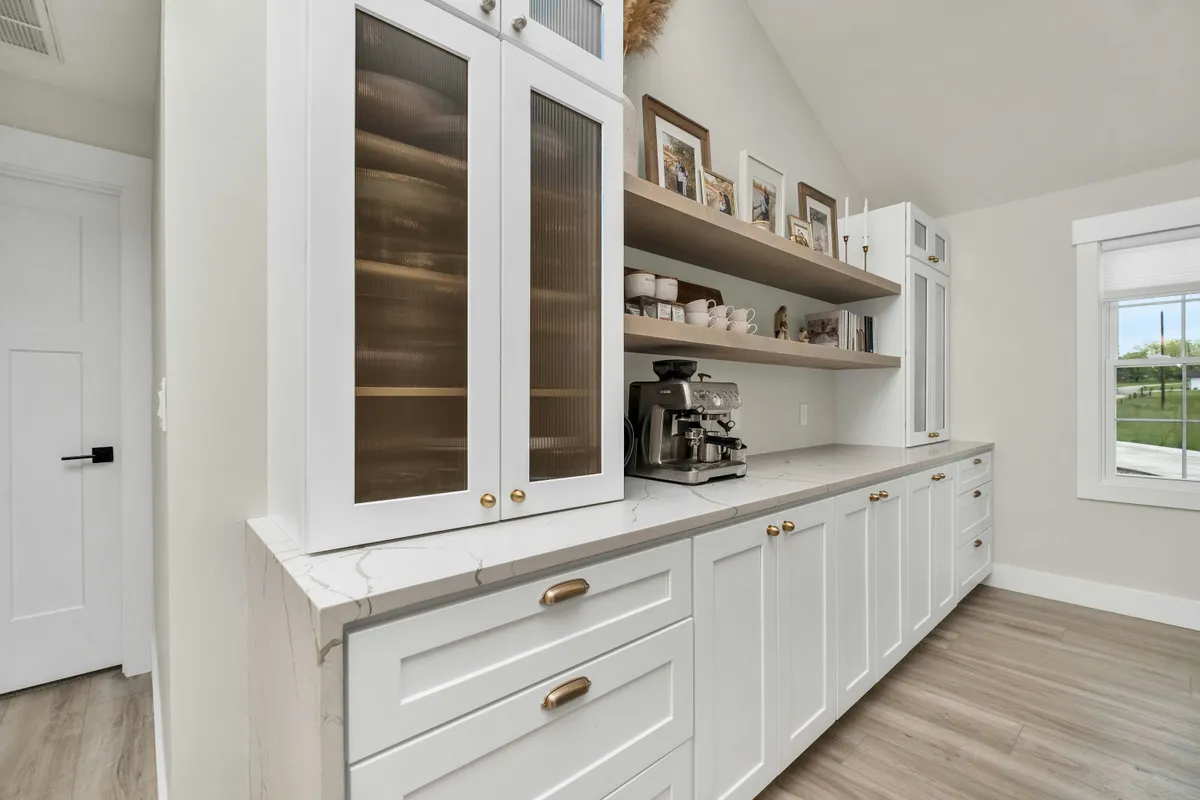

Commercial environments -- restaurant bars, barista stations, retail millwork, and professional work environments -- require drawer systems rated for commercial frequency and load. Side-mount heavy-duty systems are the standard in these contexts.
- Restaurant and bar under-counter drawer systems
- Barista station and commercial kitchen storage drawers
- Retail display and millwork drawer systems
- Professional workstation and tool storage applications
Commercial applications require slides rated for 50,000+ cycles -- standard residential slides are not appropriate
How OpenSpindle Works
Describe your project.
Share project details, dimensions, materials, and timeline. Our guided form makes it easy to get started.
Get matched with vetted shops.
We connect you with pre-qualified CNC woodworking shops that specialize in your project type and are ready to quote.
Compare quotes and hire.
Review quotes, portfolios, and ratings side by side. Hire with confidence and track your project through completion.
Designed for CNC Cabinetry
Metal drawer systems integrate most cleanly into CNC-fabricated cabinet construction. CNC production maintains the dimensional consistency that commercial-grade slides require -- especially undermount systems, which have tighter installation tolerances than side-mount alternatives.
CNC-Cut Drawer Box Fabrication
CNC-fabricated drawer boxes are dimensioned to the exact tolerance requirements of the specified slide system. Undermount slides require precise bottom panel clearance and specific box width relative to the cabinet opening. CNC production eliminates the variation that occurs in hand-built boxes and ensures every drawer in a run installs consistently.
Best For
- Production runs of matched drawer boxes for kitchen and bath installations
- Undermount systems requiring tight dimensional tolerances
- Any project where consistent drawer fit across multiple cabinets is required
Is This Material Right for Your Project?
Metal drawer systems are the right specification for any custom cabinetry application where long-term performance, quiet operation, and full interior access are expected. The primary specification variable is load rating and slide type -- not whether to use a quality drawer system.
Ideal For
- ✓Custom kitchen cabinetry at the mid-to-premium market tier
- ✓Bathroom vanity cabinetry specifying concealed undermount hardware
- ✓Built-in furniture and home office applications requiring full extension
- ✓Commercial cabinetry rated for high-frequency commercial use
- ✓Any CNC cabinet shop producing cabinets for the custom residential or light commercial market
May Not Be Ideal For
- –Budget production cabinetry where installed cost is the primary constraint
- –Exterior or outdoor applications -- standard metal slides are not weatherproof
- –Applications requiring decorative exposed hardware -- metal slides are functional, not decorative
- –Temporary or display fixture applications where basic slides are sufficient
Metal vs Wood Drawer Boxes, Undermount vs Side-Mount
The key drawer system decisions -- box material, slide type, and close mechanism -- each involve real performance tradeoffs. Understanding these comparisons is essential to specifying the right system for each application.
Metal Drawer Hardware vs Wood Drawer Boxes
- Wood drawer boxes (plywood or solid wood) are the standard for custom cabinetry -- they accept paint, stain, and decorative joinery, and pair with any slide system
- Metal drawer box systems (Blum Legrabox, Hettich ArciTech) integrate the drawer box and slide as a single system -- cleaner installation, no custom box construction required
- Metal box systems limit interior customization -- the box dimensions and finish are set by the hardware system
- Wood boxes require more fabrication labor but allow complete design flexibility in height, depth, material, and finish
Choose wood drawer boxes for custom residential cabinetry where design flexibility and material matching matter. Choose integrated metal box systems for commercial and production environments where installation speed and consistency outweigh customization.
Metal Drawer Hardware vs Side-Mount Slides
- Undermount slides mount below the drawer box and are fully concealed when open -- the interior shows no hardware
- Side-mount slides are visible on the drawer box sides when the drawer is open -- functional but less refined in appearance
- Undermount systems require tighter installation tolerances and more precise drawer box dimensions than side-mount
- Side-mount heavy-duty systems are the standard for high-load applications -- undermount options exist but are less common above 75 lb load ratings
Choose undermount for kitchen and bath cabinetry where interior aesthetics matter. Choose side-mount for heavy-duty applications, commercial environments, and any installation where installation speed is a priority over concealed hardware.
Metal Drawer Hardware vs Standard Slides
- Soft-close slides use integrated hydraulic dampers to cushion the last inch of drawer travel -- eliminating slam and reducing wear on the cabinet
- Standard slides close at full speed -- acceptable for utility and back-of-house applications where cost is the primary driver
- Soft-close adds approximately $15-40 per drawer to hardware cost depending on the system and load rating
- Soft-close is the expected standard in any custom residential kitchen or bath installation at the mid tier and above
Specify soft-close for any customer-facing residential or commercial installation. Standard slides are appropriate for utility storage, shop fixtures, and back-of-house applications where budget is the primary constraint.
How Metal Drawer Hardware Affects Project Cost
Drawer slide hardware is specified by load rating, extension type, and close mechanism. Cost scales with load rating and system platform -- a soft-close undermount system costs more per drawer than a basic side-mount, but the difference is modest relative to total cabinet cost.
Cost Impact by Construction Method
Standard Residential Slides
Full-extension soft-close side-mount slides for standard residential cabinetry. Appropriate for bedroom built-ins, utility storage, and secondary kitchen drawers.
Includes
- Full-extension soft-close side-mount slides
- Standard residential load rating (75 lb)
- Basic finish options
Best For
Premium Undermount Systems
Soft-close undermount slides from Blum, Hettich, or Salice. The professional standard for custom kitchen and bath cabinetry in the mid-to-premium tier.
Includes
- Concealed undermount soft-close slides
- Standard to medium load rating (88-100 lb)
- Full-extension with over-travel option
- Multiple finish options
Best For
Heavy-Duty & Commercial Systems
Heavy-duty and commercial-rated slide systems for high-load and high-frequency applications. Required for pot drawers, file drawers, and commercial cabinetry.
Includes
- Heavy-duty side-mount slides (100-150 lb rating)
- Commercial-frequency cycle rating
- Full-extension with positive stop
- Locking options available
Best For
What Actually Drives Metal Drawer Hardware Cost
- ·Load rating -- standard residential vs. heavy-duty vs. commercial rated systems
- ·Slide type -- side-mount is less expensive than undermount for equivalent load rating
- ·Close mechanism -- soft-close adds cost vs. standard slides
- ·Brand platform -- premium brands (Blum, Grass) cost more than budget alternatives with equivalent specs
- ·Finish -- specialty finishes (matte black, white) carry a premium over standard stainless
Key Insight
Drawer slide hardware represents a small fraction of total cabinet cost but has an outsized effect on perceived quality. Upgrading from standard to premium undermount soft-close slides typically adds $20-50 per drawer -- marginal on a custom kitchen project, but immediately apparent to the end customer every time they open a drawer.
Finishes & Design Guidance
Metal drawer slide systems are functional hardware -- their aesthetic contribution is the absence of visible hardware when the drawer is open (undermount) or the clean integration of the slide rail color with the cabinet interior (side-mount). The finish and interior appearance of the drawer system is primarily determined by the drawer box material and the interior finishing specification.
Stainless & Brushed Steel
Stainless and brushed steel slide finishes are the standard specification for commercial cabinetry and contemporary residential kitchens. They are neutral, corrosion-resistant, and blend with most cabinet interior finishes.
Matte Black & Dark Finishes
Matte black slide systems are increasingly specified in modern kitchen installations where dark cabinet interiors and black hardware are part of the design intent. Available from most major hardware manufacturers as a premium finish option.
White & Light Cabinet Interiors
White and light gray slide finishes are specified for painted white cabinetry where standard silver hardware would be visually distracting. Available as a specialty finish from most major manufacturers.
Pro Tip
Specify all drawer slide hardware from the same manufacturer platform on a given project. Mixed hardware platforms create inconsistent installation geometry, complicate spare parts sourcing, and make servicing difficult for the end customer. Blum, Hettich, Salice, and Grass each maintain complete product platforms -- pick one and use it throughout.
